High-Voltage Stackable LiFePO4 Battery (51.2V 100Ah Modules, 204.8V+ Stacks)

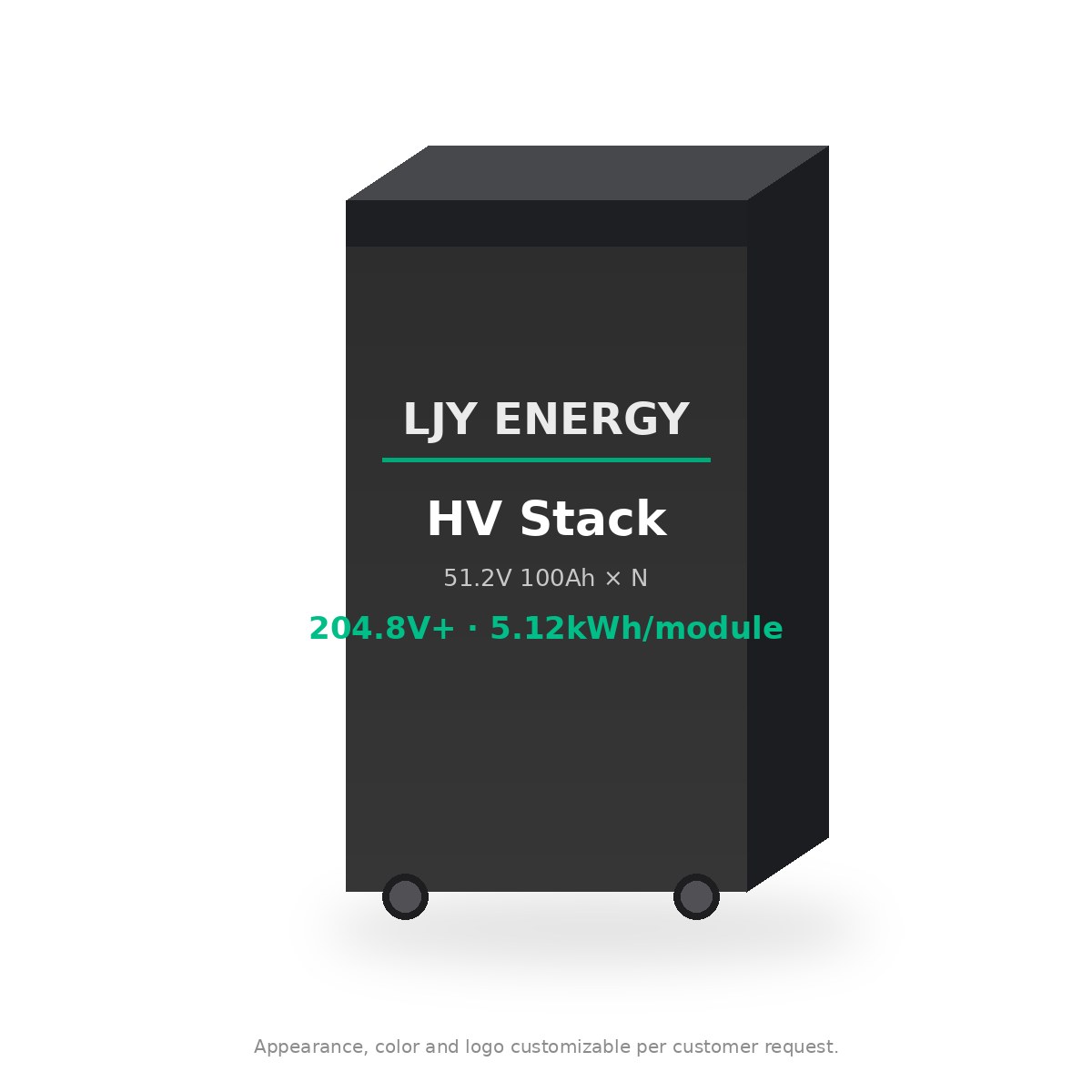

LJY-HV51100-STACK high-voltage stackable LiFePO4 battery with 51.2V 100Ah modules, front view, white background — Appearance, color and logo customizable per customer request.

Product Overview

A high-voltage (HV) stackable LiFePO4 battery system made of 51.2V 100Ah (5.12kWh) modules connected in series under a high-voltage BMS / control box. Typical stacks start at 4 modules (204.8V, 20.48kWh) and grow module by module. It is designed for HV hybrid inverters that are now common in EU, AU and other residential and light-commercial markets.

Request an HV stackable module quotation: LJY-HV51100-STACK · Stackable home storage · ESS storage RFQ · WhatsApp: +86 159 8945 0735

Distributors and installers re-order the same module SKU project after project, so the module, the control box and the communication setup are the repeat-purchase items. This page is different from our low-voltage stackable 51.2V home storage, where modules are connected in parallel at 51.2V.

Appearance, color and logo customizable per customer request.

Request a Quote

WhatsApp: +86 159 8945 0735

Specifications

How to read Status — three classes: [Industry reference] = standard reference parameter common to this product class (not an LJY test result). [Optional configuration] = configurable per OEM/ODM project (BMS communication, parallel/series setup, heating, enclosure, logo). [Confirmed per project] = fixed only in the datasheet issued with your quotation. Arithmetic: energy = nominal voltage × Ah.

Group	Parameter	Value	Status
Module	Module voltage / capacity	51.2V (16S) · 100Ah	[Industry reference]
Verification	Capacity confirmation method	Stated Ah and Wh are confirmed per project by the method agreed in the quotation (examples used in this industry: constant-current discharge to the BMS cut-off, BMS-reported capacity after a controlled cycle, or a factory capacity/test summary supplied with the shipment). This page does not publish a measured capacity figure.	[Confirmed per project]
Module	Module energy	51.2V × 100Ah = 5.12kWh	[Industry reference] — arithmetic
Stack	Example stack sizes	4 modules = 204.8V / 20.48kWh · 6 = 307.2V / 30.72kWh · 8 = 409.6V / 40.96kWh	[Industry reference] — arithmetic
Stack	Module count range / max series	Set by HV BMS and inverter voltage window	[Confirmed per project]
Stack	Operating voltage window	Per module count (16S LiFePO4 per module)	[Confirmed per project]
Stack	Rated current	Common market class ~50–100A	[Industry reference] · [Confirmed per project]
BMS	HV BMS / control box	Battery control unit with protections, pre-charge and breaker	[Confirmed per project]
BMS	Communication	CAN / RS485 to inverter; protocol per project	[Optional configuration]
BMS	Parallel stacks	Multiple stacks in parallel — configured per project; no fixed maximum published	[Optional configuration]
Thermal	Self-heating	Available on request	[Optional configuration]
Thermal	Charge temperature behaviour	Charging typically blocked near 0°C	[Industry reference]
Mechanical	Enclosure / colour / logo	Stackable tower housing; colour, logo, labels, packaging	[Optional configuration]
Mechanical	Dimensions / weight / IP rating	Per module design	[Confirmed per project]
Cells	Cell brand / traceability documents	Stated per order; documents on request	[Confirmed per project]
Commercial	Certificates / MOQ / lead time / warranty	Per model and order	[Confirmed per project]

For distributors & importers: HV stackable 51.2V 100Ah modules

Request a distributor quote for the HV stackable 51.2V 100Ah modules. Send your market, quantity band, private-label needs and the inverter/charger or application.

WhatsApp RFQ: +86 159 8945 0735 RFQ form

Distributor FAQ

Can I order a 153.6V 100Ah (3-module) high-voltage stack in bulk?

Yes, if your HV inverter's battery-voltage window accepts it: 3 × 51.2V 100Ah modules = 153.6V, 15.36kWh (arithmetic). The module count per stack and the HV BMS are confirmed against the inverter model and firmware per project; quantity, price and lead time are confirmed per order.

Is the HV stackable battery for sale to installers and distributors?

Yes. We supply it to ESS integrators, installers and distributors as an OEM/ODM build, with private label available. It is not sold as a retail single unit; each order starts from the inverter and site data in the RFQ.

Do you also supply low-voltage stackable systems?

Yes. For 48V-class (51.2V) inverters, see stackable LiFePO4 home energy storage; LV stacks are paralleled rather than series-connected, and the BMS/inverter pairing is confirmed per project.

Optional configurations (OEM/ODM)

LJY Energy supplies this model as an OEM/ODM configurable build. The items below are configured per customer project — they are not fixed catalog defaults.

BMS communication: CAN/RS485 protocol set to your HV inverter — confirmed per project.
Series configuration: module count to match the inverter battery-voltage window.
Parallel stacks: configured per project; no fixed maximum is published.
Self-heating: available on request, to be confirmed per project.
Enclosure & branding: housing colour, logo, labels, packaging — Appearance, color and logo customizable per customer request.

BMS, communication & protection

In an HV stack, the BMS/control box handles pre-charge, isolation and contactor control as well as cell protection. It must match the inverter voltage window and protocol.

BMS sizing guide

Load / use case	Suggested BMS rating
HV hybrid inverter, home	Module count set to inverter battery-voltage window
Light commercial	Parallel stacks per project design
Cold sites	Add self-heating option (to be confirmed)

Never assume brand-level compatibility. Send the inverter model and firmware; protocol and settings are confirmed per project.

Size, handling & fitment

Stacked modules sit on a base and are connected in series; plan floor load, wall anchoring and front clearance per the installation manual for your build.

HV DC requires qualified installation; follow local electrical rules.

Spec, compliance & configuration fields

Use this table to prepare an RFQ for the HV stackable system. Per-module values; HV stack voltage depends on the module count.

Group	Parameter	Value	Status
Energy	Nominal energy	51.2V × 100Ah = 5,120.0Wh (5.12kWh)	[Industry reference] — arithmetic
Energy	Usable energy at an example DoD	Per 51.2V 100Ah module: 90% DoD ≈ 4.61kWh; 80% DoD ≈ 4.10kWh. Example only; real limit set by BMS/HV inverter settings	[Industry reference] · [Confirmed per project]
Enclosure	IP rating options	IP20 / IP21 (indoor) or IP65-class (outdoor enclosure) offered as options by project; rating and test basis confirmed per order. Some import markets use enclosure IP class in customs or tender classification — check with your broker	[Optional configuration] · [Confirmed per project]
Thermal	Operating temperature and heat derating	Charge / discharge temperature windows and the derating curve are set in the BMS and confirmed per project (see the climate guidance on this page where present)	[Confirmed per project]
Life	Cycle life — test-condition fields	Quote cycle life only with: DoD, charge / discharge C-rate, ambient temperature, end-of-life capacity %, cell type. Values are confirmed per project; no figure is claimed here	[Confirmed per project]
Commercial	Warranty structure	Structure to confirm per order: years vs cycles vs energy throughput, conditions (DoD, temperature, installation), who handles service	[Confirmed per project]
Documents	Certificate / test-report documents	Provided per order if available — confirm at inquiry. This page does not state that LJY holds any certificate or report	[Confirmed per project]
Documents	Importer-held certificates (OEM note)	Where an importer or brand owner holds or obtains certificates in its own name, scope, labeling and supporting documents are agreed in the OEM/ODM project	[Optional configuration] · [Confirmed per project]
Mechanical	Dimensions	Per module tower design; confirm stacking height, footprint and floor load before quoting	[Confirmed per project]
Communication	Ports	CAN and RS485 as typical BMS ports; dry-contact or other ports on request	[Optional configuration]
Communication	Protocol profiles	Optional profiles for inverter families such as Deye, Growatt, Luxpower, Victron-type, Pylontech-style: to be confirmed per project against the exact inverter model and firmware. This is not a compatibility claim and no compatibility list is published	[Optional configuration] · [Confirmed per project]
Supply options	Supply scope (pack, enclosure, components)	Complete finished stackable modules; enclosures and components (cells, BMS, modules, harness) for customers who assemble locally; and OEM/ODM pack programs, coordinated per project. The quotation separates existing standard configuration, customizable options and items still to be confirmed. Cell-level supply: see LiFePO4 prismatic cells wholesale	[Optional configuration] · [Confirmed per project]
Branding	Private label	Logo, colour, labels and packaging; Appearance, color and logo customizable per customer request	[Optional configuration]
Logistics	Weight and shipping data	Net / gross weight, carton or crate size and pallet data are confirmed per model before quoting	[Confirmed per project]

Rows labelled [Industry reference] are arithmetic or market norms, not LJY measurements. [Optional configuration] items are available by project; [Confirmed per project] items are stated per order. Send your target market, inverter model and documents needed with your inquiry.

Applications

Residential HV hybrid inverter systems
Light commercial self-consumption and backup
Installer and distributor standard SKUs
Private-label HV home batteries

Application limits

Not interchangeable with 48V low-voltage inverters.
Mixing module generations in one stack is not recommended.
Protocol and module count are project-specific.

OEM / ODM & wholesale

LJY Energy is a China-based LiFePO4 battery supplier and OEM/ODM solutions provider offering customization, project-confirmed specifications and export supply coordination. Appearance, color and logo customizable per customer request. Certificate and documentation scope (e.g. UN38.3 / MSDS for shipping) is confirmed per model, order and target market — request the current document package. See the product catalog and wholesale & distributor program.

What to include in your inquiry

Application and site (home, C&I, off-grid, backup)
Voltage / Ah / kWh target
Number of modules / target stack voltage
Inverter or PCS model and firmware
Climate (min/max ambient, indoor/outdoor)
Annual volume
Logo / appearance / packaging needs
Target market (documentation scope)

Request a Quote

WhatsApp: +86 159 8945 0735

Frequently Asked Questions

HV or LV — which should I choose?

Choose by inverter: HV hybrid inverters need an HV stack; 48V inverters need a 51.2V (48V class) battery. For current, cabling and minimum stack size side by side, see our high-voltage vs low-voltage battery storage guide.

How many modules can I stack?

The module count is set by the HV BMS and the inverter voltage window and confirmed per project.

How is MOQ set?

MOQ is confirmed per project stage (sample, pilot, production) and depends on cells, enclosure tooling and branding scope.

Which certificates apply?

Certificate scope is confirmed per model, order and target market. We do not claim certifications on this page.

Is it compatible with my inverter?

We do not publish a compatibility list. Communication protocol and settings are confirmed against your exact inverter or PCS model and firmware per project.

Values marked [To confirm] or [Competitor public] are not LJY-verified defaults. Product images are product renders for illustration. Content as of October 2026.
