Product Overview

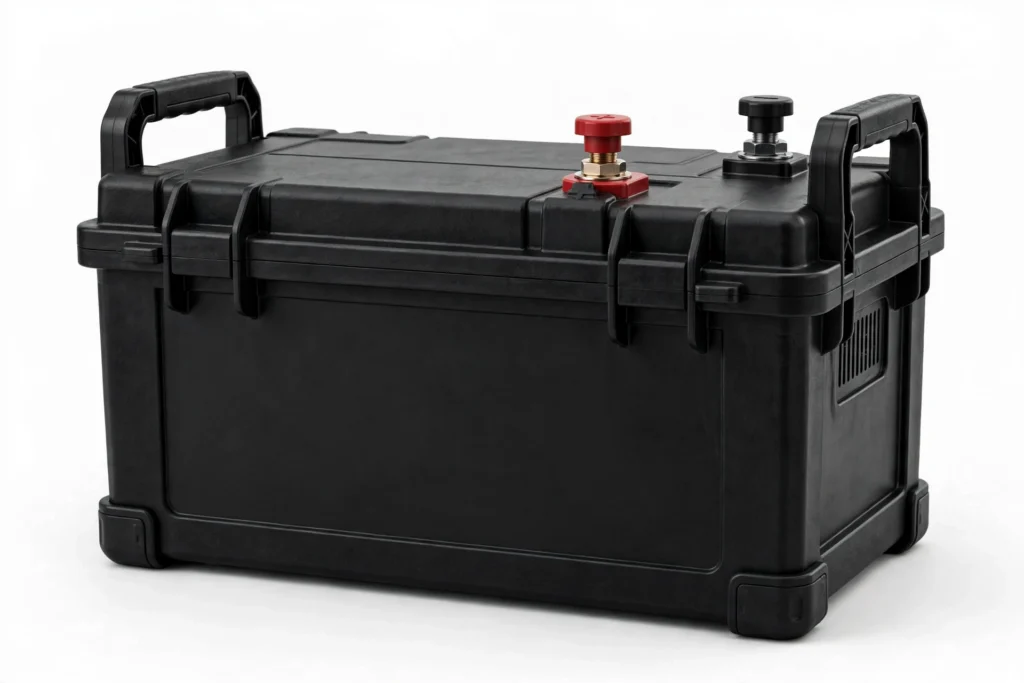

The 72V LiFePO4 golf cart battery powers high-performance golf carts, neighborhood electric vehicles (NEVs), and utility vehicles requiring higher voltage for speed and torque. Lower-voltage options sit in the 36V–72V golf cart battery series; for standard 48V carts, see the 48V 105Ah golf cart battery. Replacing lead-acid 72V systems, it delivers longer range, faster charging, and zero maintenance.
For standard voltage platforms, see our 48V 100Ah, 48V 150Ah, and 36V 100Ah models.
- Higher voltage platform — more power for hills and heavy loads
- Extended range — 80-120 km per charge depending on capacity
- Fast charging — 2-3 hour full charge with proper charger
- Long lifespan — 4000+ cycles vs 500 for lead-acid (per the cell datasheet; both figures depend on depth of discharge, temperature and C-rate)
Technical Specifications
| Group | Parameter | Value | Status |
|---|---|---|---|
| Electrical | Nominal voltage | 76.8V (24S) | Typical |
| Electrical | Capacity options | 100Ah / 150Ah / 200Ah | Typical |
| Electrical | Energy | 7.68kWh to 15.36kWh | Typical |
| BMS | Continuous discharge | 200A | Typical |
| Charging | Charge voltage | 87.6V LiFePO4 charger required | Typical |
Capacity configurable. Final specifications confirmed in quotation.
Who Needs 72V — and Choosing the Capacity
72V is the performance tier of small electric vehicles. The higher voltage delivers the same power at lower current, which is what high-torque motors, hilly terrain, and sustained road speeds ask for. If your vehicle was built on a 72V platform, the battery must match it — this is a replacement and OEM supply page for that platform, not an upgrade path from 36V or 48V carts (those need their own models, linked above).
Within the platform, capacity sets range and duty:
- 100Ah / 7.68kWh: the standard fit for performance carts in daily recreational and community use.
- 150Ah / 11.52kWh: for NEVs and utility vehicles running longer routes or full work shifts between charges.
- 200Ah / 15.36kWh: the maximum-range configuration for shuttle fleets and high-utilization vehicles where charging windows are short — paired with fast charging (2–3 hours with the proper charger), it keeps vehicles in service instead of on the charger.
Across all three, the 200A continuous BMS supports the high current draw of performance motors and loaded climbs. Send us the vehicle model, motor/controller specification, and daily route pattern, and we will confirm the capacity and BMS configuration before quoting.
Applications
- High-performance golf carts
- Neighborhood electric vehicles
- Utility and maintenance vehicles
- Resort shuttle fleets
Wholesale, OEM & ODM
Custom voltage, capacity, and BMS configurations for vehicle manufacturers. Contact us for OEM pricing.
Beyond vehicle manufacturers, we supply this platform to NEV and utility-vehicle distributors and to fleets converting 72V lead-acid vehicles. Because capacity is configurable per project, OEM programs can standardize on one housing and BMS family across a vehicle range and vary capacity by model — one qualification process, several vehicle variants.
Frequently Asked Questions
Can this replace the lead-acid batteries in my 72V vehicle?
That is its purpose: it replaces 72V lead-acid systems with a single lithium pack. Confirm the vehicle’s tray space and charger with us — the charger must be a LiFePO4 unit at 87.6V.
Which capacity should I choose?
Match it to the duty cycle: 100Ah for standard daily use, 150Ah for long routes and work shifts, 200Ah for fleets that need maximum range with short charging windows. Expected range across the options is 80–120 km per charge depending on capacity and vehicle.
How fast does it charge?
With the proper matched charger, a full charge takes about 2–3 hours — a practical overnight or between-shift window for fleets, and far faster than the lead-acid it replaces.
Do you supply vehicle manufacturers?
Yes — custom voltage, capacity, and BMS configurations are handled as OEM programs for vehicle manufacturers, with per-project specification confirmation.
Where This Battery Is Used
This high-voltage platform serves the performance end of our Golf Cart Battery Solutions. Send us your vehicle model, capacity target and daily usage for a configuration proposal.
