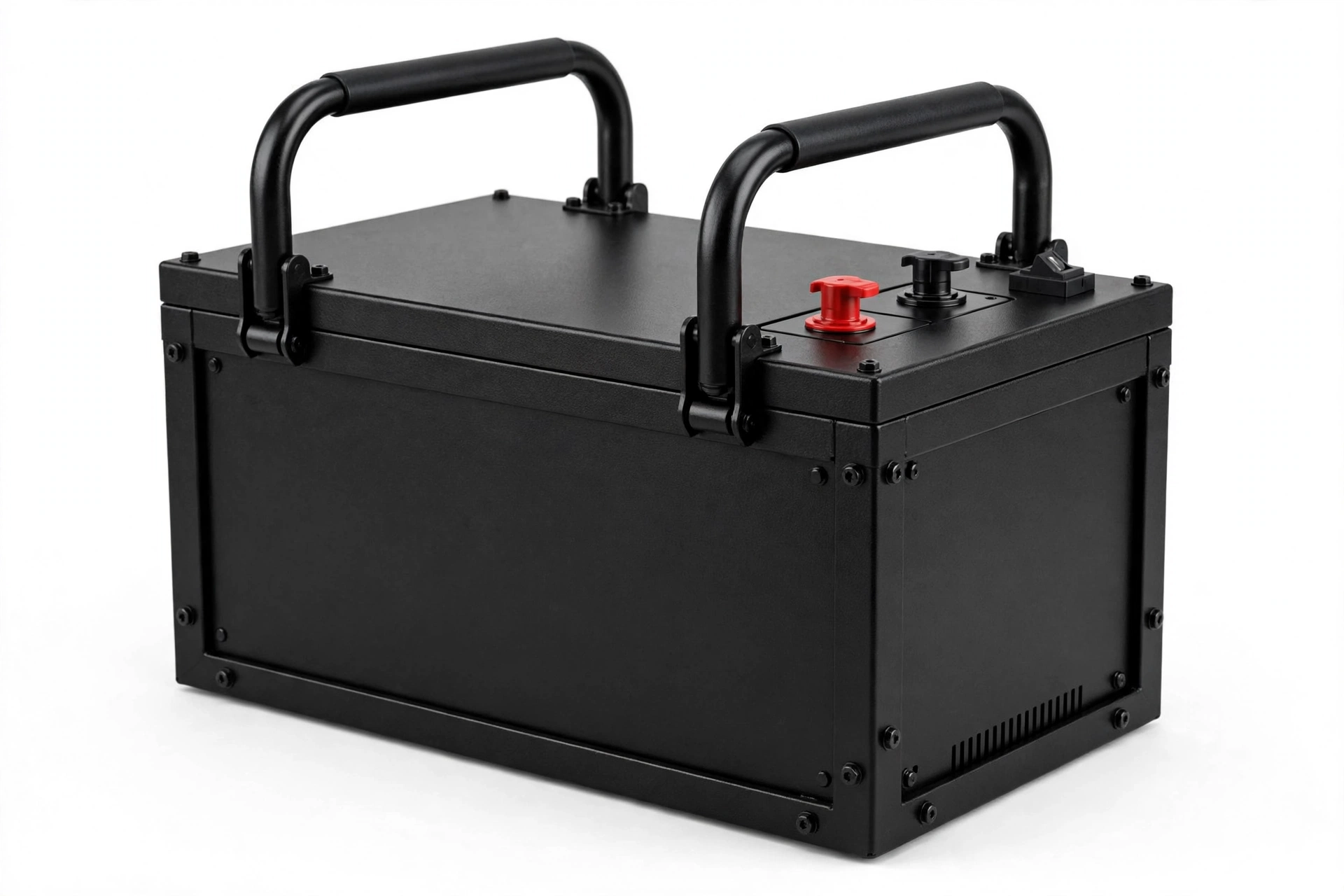

48V 100Ah lithium iron phosphate battery for golf carts and low-speed electric vehicles. Drop-in replacement for lead-acid battery packs.
Product Overview
The 48V 100Ah LiFePO4 golf cart battery delivers 5.12kWh of deep-cycle energy in a single unit designed to replace six 8V or four 12V lead-acid batteries. It fits standard golf cart battery compartments and works with common cart controllers, making it a practical upgrade for dealers and fleet operators moving from lead-acid to lithium.
For buyers evaluating lithium for golf carts, this model covers the most common 48V replacement scenario. See also our golf cart battery solutions page for selection guidance, and the 12V 100Ah deep cycle battery for 12V system builds.
- 5.12kWh usable energy — typical driving range 40–60 km per charge depending on cart weight and terrain
- 150A continuous BMS, 300A peak (10s) — handles hill climbs and acceleration without cut-off
- 70% lighter than lead-acid — reduces cart weight, extends range, easier handling
- Zero maintenance — no watering, no acid spills, no terminal corrosion
Choosing between capacity points? This page covers the 100Ah configuration. The golf cart segment’s established rating point is 105Ah — see the 48V 105Ah golf cart battery page for that configuration, with the dealer compatibility-confirmation checklist for Club Car, EZGO and Yamaha conversions.
Technical Specifications
| Group | Parameter | Value | Status |
|---|---|---|---|
| Model | Model number | LJY-48V100AH-GC | Typical |
| Electrical | Nominal voltage | 51.2V (16S LiFePO4) | Typical |
| Electrical | Rated capacity | 100Ah | Typical |
| Electrical | Energy | 5.12kWh | Typical |
| BMS | Continuous discharge current | 150A | Typical |
| BMS | Peak discharge current | 300A (10s) | Typical |
| BMS | Protections | Overcharge, over-discharge, over-current, short-circuit, temperature | Typical |
| Charging | Charge voltage | 58.4V (LiFePO4 charger required) | Typical |
| Charging | Recommended charger | 58.4V LiFePO4, 15–25A | Optional |
| Durability | Cycle life | 4000+ cycles at 80% DOD | Typical |
| Durability | Operating temperature | Charge 0–55°C / Discharge −20–60°C | Typical |
| Mechanical | Case | Metal case with carrying handles | Typical |
| Mechanical | Dimensions / weight | GC2-compatible or custom; approx. 40–45 kg | To Be Confirmed |
| Options | Bluetooth monitoring | App-based SOC and cell monitoring | Optional |
| Options | SOC display | LCD or LED meter | Optional |
| Options | Matched charger | 58.4V LiFePO4 charger bundled | Optional |
Specifications above are typical reference values for quotation and comparison. Final specifications are confirmed in the formal quotation before order. We do not present sample parameters as fixed commitments, and we do not claim third-party test results or certifications we cannot verify.
Full Specifications — 51.2V 100/105Ah Golf Cart Pack (standard buildable configuration)
The table below lists the standard buildable configuration for this series, compiled from industry-typical values for this pack class. Final values are written into the project specification and confirmed in the formal quotation.
| Group | Parameter | Standard configuration |
|---|---|---|
| Electrical | Cell configuration | 16S1P, 3.2V LiFePO4 prismatic (100Ah or 105Ah cells) |
| Electrical | Energy | 5.12kWh (100Ah) / 5.38kWh (105Ah) |
| Electrical | Operating voltage range | 40–58.4V |
| Electrical | Charge voltage | 57.0–58.4V CC/CV; float 54V or off |
| Electrical | Charge current | ~20–50A recommended, up to 1C max |
| Electrical | BMS discharge cut-off / recovery | ~40V / ~42V |
| Electrical | High-rate BMS options | 105A, 150A, 175–250A continuous; peaks 300A (30 s) to 600A (3 s) by configuration |
| Electrical | Self-discharge | ≤1–3% per month |
| BMS | Protections | Pack & cell over-/under-voltage, over-current, short circuit, cell & BMS over-temperature, charge freeze protection |
| BMS | Communication | Bluetooth app; CAN / RS485 on request (controller/charger integration) |
| BMS | Parallel | Up to 3–4P typical; series not recommended |
| BMS | Regen | Braking-resistor option against regenerative over-voltage |
| Thermal | Charge / discharge temperature | 0–55 °C / −20–60 °C |
| Thermal | Low-temperature options | Charge cut-off below ~0–1 °C standard; heating-on-charge version on request |
| Life | Cycle life (with conditions) | 3,500 @ 0.2C, 100% DoD, 25 °C to ≥6,000 @ 80% DoD (market-typical) |
| Mechanical | Dimensions (L×W×H) | approx. 520–583 × 288–350 × 203–270 mm; custom to cart tray |
| Mechanical | Weight | approx. 37–51 kg |
| Mechanical | Case / IP | Powder-coated steel, stainless or ABS; IP67 |
| Mechanical | Terminals / torque | M8 bolt, ~12 ± 2 N·m |
| Display | SOC display | LCD touch monitor or SOC meter (optional) |
| Accessories | Matched charger, DC-DC converter, mounting strap | Optional |
| Shipping | Transport class | UN3480 Class 9 (UN3481 if packed with equipment) |
| OEM | Other configurations on request | 36V/48V/72V, 100–200Ah, cart-specific trays (Club Car/EZGO/Yamaha fitment confirmed per model) |
Certificates: UN38.3, MSDS/SDS, IEC 62619, IEC 62133, UL 1973, UL 9540A, CE/EMC, RoHS and others — arranged per project; certification and testing fees borne by the buyer.
Commercial: MOQ, lead time, price and warranty: by quotation.
Compatibility & Applications
Fits common 48V golf carts
- Club Car DS / Precedent / Onward (48V models)
- EZ-GO TXT / RXV (48V models)
- Yamaha Drive / Drive2 (48V models)
- Standard golf cart battery tray dimensions; confirm your tray size before ordering
Typical applications
- Golf course rental and private carts
- Low-speed electric vehicles and neighborhood EVs
- Utility vehicles, campus shuttles, and resort transport
- Sightseeing cars and amusement park vehicles
See also: Golf Cart Battery Solutions for voltage selection and conversion guidance.
Charging & Compatibility
How to charge
- Use a dedicated 58.4V LiFePO4 charger — lead-acid chargers use the wrong charge profile and will not fully charge the battery
- Recommended charge current 15–25A for a balance of speed and cell longevity
- Onboard or external charger options available; matched chargers can be bundled with the battery
If you are converting a fleet from lead-acid, plan charger replacement together with the batteries. We can supply matched 58.4V chargers and advise on charge infrastructure for multi-cart operations.
Lifespan & Safety
- 4000+ deep cycles at 80% DOD — roughly 8–10x the cycle life of lead-acid golf cart batteries under comparable use
- Built-in BMS protection — guards against overcharge, over-discharge, over-current, short-circuit, and temperature extremes
- LiFePO4 chemistry — thermally stable cathode material widely used in traction and storage applications
- No acid, no fumes — safer handling and storage than flooded lead-acid; no watering or equalization needed
Cycle life figures are reference values based on cell specifications at stated depth of discharge. Actual service life depends on discharge rates, ambient temperature, and charge practices. We do not fabricate test reports or certification claims.
Wholesale, OEM & ODM
- Voltage options: 36V, 48V, and 72V configurations for different cart platforms
- Capacity range: 60Ah–200Ah options within each voltage to match range requirements
- BMS customization: discharge current rating, Bluetooth monitoring, low-temperature protection logic
- Mechanical customization: case dimensions, terminal position, handles, and mounting to fit your tray
- Fleet and dealer programs: volume pricing, matched chargers, and coordinated delivery schedules
We are not limited to the SKUs listed on this site. LJY Energy can configure batteries around your application — tell us your cart model, range target, and volume, and we will propose a configuration.
Frequently Asked Questions
Will this battery fit my golf cart?
It is designed for standard 48V golf cart battery trays, including Club Car, EZ-GO, and Yamaha 48V models. Send us your cart model and tray dimensions and we will confirm fitment before you order.
Do I need a new charger?
Yes. A LiFePO4-specific 58.4V charger is required — lead-acid chargers will not fully charge the battery and may shorten its life. We can bundle a matched charger with your order.
How far can I drive on one charge?
Typical range is 40–60 km per charge depending on cart weight, passenger load, terrain, and driving style. Hilly courses and heavy loads reduce range; tell us your use case and we can recommend the right capacity.
Can I connect multiple batteries?
For most golf carts a single 48V 100Ah unit is sufficient. If you need extended range, parallel configurations are possible — contact us to discuss BMS and wiring requirements for your setup.
How long does the battery last?
Reference cycle life is 4000+ cycles at 80% depth of discharge, which for typical golf cart use translates to many years of service — roughly 8–10x longer than lead-acid equivalents. Actual life depends on usage patterns.
Do you support fleet and dealer orders?
Yes. We offer volume pricing, 36V/48V/72V configurations, matched chargers, and coordinated delivery for fleets, dealers, and distributors. Contact us with your volume and timeline.
