80V (83.2V) LiFePO4 Forklift Battery Series — 300 / 400 / 500 / 600Ah (400Ah Reference Model)

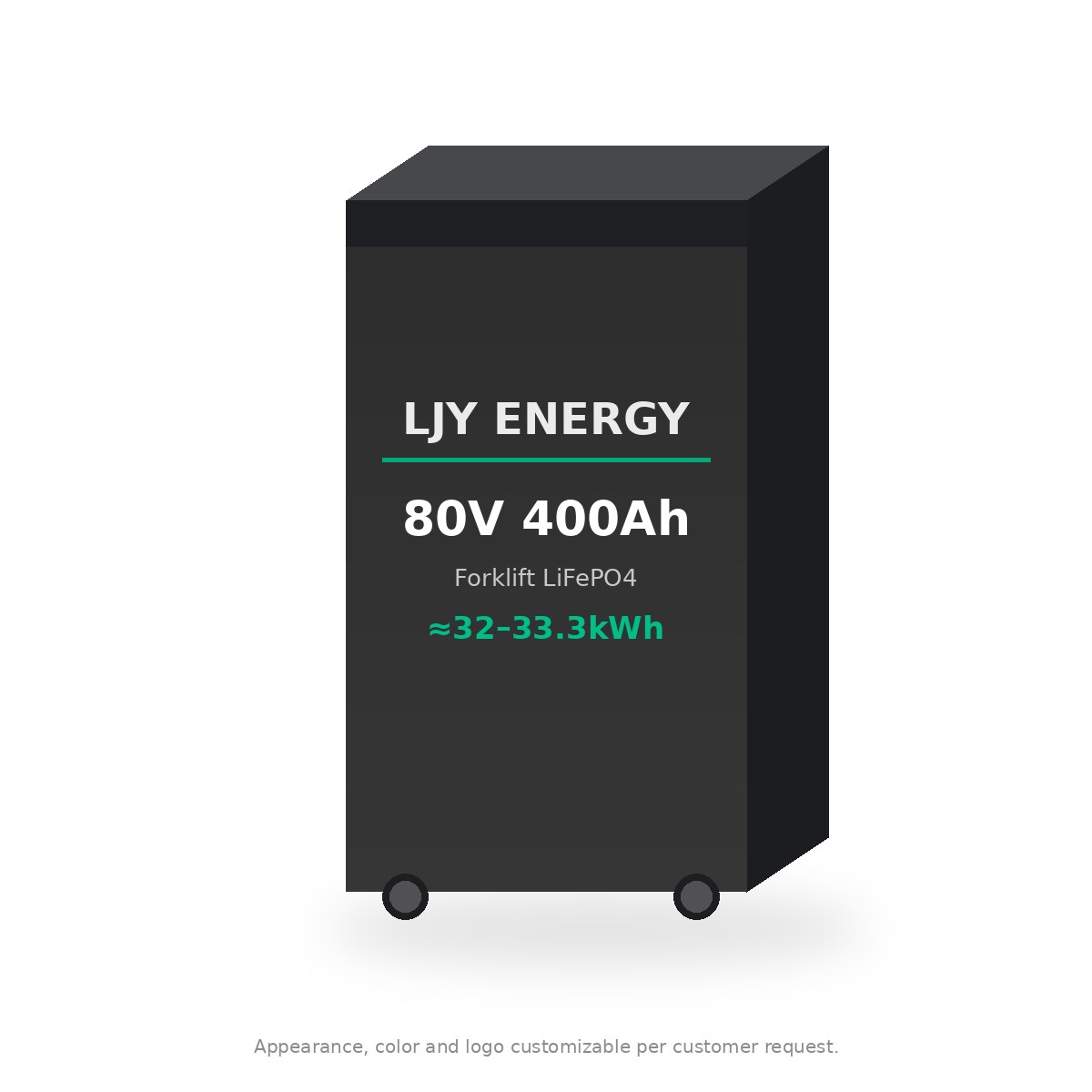

LJY-80V400-FLT 80V 400Ah LiFePO4 forklift battery, front view, white background — Appearance, color and logo customizable per customer request.

Product Overview

An 80V-class 400Ah LiFePO4 traction battery for 80V counterbalance forklifts, replacing flooded lead-acid trays. Forklift dealers, rental fleets and battery service companies re-order standard sizes truck model by truck model, which makes 80V 400Ah one of the most repeated lithium conversion SKUs.

The two things that decide fit are the tray dimensions and the minimum battery weight (counterweight) required by the truck. Both are configured per project. For a broader overview see our 48V–80V forklift traction battery guide.

Appearance, color and logo customizable per customer request.

Request a Quote

WhatsApp: +1 404 784 1946 (backup: +86 159 8945 0735)

Specifications

How to read Status — three classes: [Industry reference] = standard reference parameter common to this product class (not an LJY test result). [Optional configuration] = configurable per OEM/ODM project (BMS communication, parallel/series setup, heating, enclosure, logo). [Confirmed per project] = fixed only in the datasheet issued with your quotation. Arithmetic: energy = nominal voltage × Ah.

Group	Parameter	Value	Status
Electrical	Voltage class	80V class: 25S ≈ 80V or 26S ≈ 83.2V	[Industry reference]
Electrical	Capacity / energy	25S: 80V × 400Ah = 32.0kWh · 26S: 83.2V × 400Ah = 33.28kWh (about 32–33.3kWh)	[Industry reference] — arithmetic
Electrical	Continuous / peak discharge	Common market class ~300A continuous with short higher peaks	[Industry reference] · [Confirmed per project]
Electrical	Charge voltage / charger	LiFePO4 CC/CV profile; charger communication per project	[Confirmed per project]
BMS	Protections	Over-charge/discharge, over-current, short-circuit, temperature, balancing	[Industry reference]
BMS	Truck / charger communication	CAN to truck controller and charger — protocol per project	[Optional configuration]
BMS	Telematics	4G / cloud monitoring	[Optional configuration]
Thermal	Self-heating (cold store)	Available on request	[Optional configuration]
Mechanical	Tray dimensions	Matched to the truck battery compartment (DIN/BCI tray reference)	[Confirmed per project]
Mechanical	Counterweight / total weight	Ballast added to meet truck minimum battery weight	[Optional configuration] · value [Confirmed per project]
Mechanical	Connectors	REMA / Anderson-type charge and discharge connectors	[Optional configuration]
Mechanical	IP rating / display	Per enclosure design; SOC display optional	[Confirmed per project]
Cells	Cell brand / traceability documents	Stated per order; documents on request	[Confirmed per project]
Commercial	Certificates / MOQ / lead time / warranty	Per model and order	[Confirmed per project]

Optional configurations (OEM/ODM)

LJY Energy supplies this model as an OEM/ODM configurable build. The items below are configured per customer project — they are not fixed catalog defaults.

Series count: 25S or 26S to match truck and charger.
Counterweight: steel ballast to meet the truck minimum battery weight.
CAN integration with truck controller and charger — confirmed per project.
Telematics: 4G/cloud monitoring option.
Self-heating for cold-store trucks — available on request, to be confirmed per project.
Branding: Appearance, color and logo customizable per customer request.

BMS, communication & protection

Forklift duty combines lifting peaks with regenerative braking. The BMS must cover both the motor controller peak and regen charge current.

BMS sizing guide

Load / use case	Suggested BMS rating
Single-shift counterbalance	~300A continuous class, peak per controller
Multi-shift with opportunity charging	Charge current and charger CAN per project
Cold store (below 0°C)	Self-heating option

Send truck brand/model, controller, existing lead-acid tray size and weight, and charger model.

Size, handling & fitment

Measure the battery compartment (L×W×H) and read the minimum battery weight from the truck data plate. Lithium is much lighter than lead-acid, so ballast is often needed to keep truck stability — confirmed per project.

Final dimensions, weight and connector positions are fixed in the project drawing.

Series options: 300 / 400 / 500 / 600Ah (80V class)

This page covers the 80V forklift line as an OEM/ODM series. 400Ah is the reference model; larger capacities are common for heavy trucks. Energy = nominal voltage × Ah.

Capacity	25S energy (80.0V × Ah)	26S energy (83.2V × Ah)	Typical use class (industry reference)
300Ah	24kWh	24.96kWh	Reach trucks (high-bay)
400Ah	32kWh	33.28kWh	Heavy counterbalance — reference model on this page
500Ah	40kWh	41.6kWh	Heavy counterbalance, long shifts
600Ah	48kWh	49.92kWh	Container handlers, ports, multi-shift heavy duty

Typical, optional and project-confirmed items

Group	Parameter	Value	Status
Typical configuration	Voltage / series	25S 80V or 26S 83.2V (80V class)	Typical configuration
Typical configuration	Capacity ladder	300 / 400 / 500 / 600Ah	Typical configuration
Typical configuration	Chemistry / BMS	LiFePO4 with smart BMS protections and balancing	Typical configuration
Optional configuration	Larger or intermediate capacity	e.g. 700Ah+ or custom Ah to fit a tray	Optional configuration
Optional configuration	BMS communication	CAN / RS485 to truck and charger; 4G / cloud monitoring	Optional configuration
Optional configuration	Enclosure, counterweight, connectors	Steel case, ballast plates, REMA / Anderson-type connectors, SOC display	Optional configuration
Optional configuration	Self-heating (cold store)	Available on request	Optional configuration
Optional configuration	Branding	Colour, logo, labels, packaging	Optional configuration
Project-confirmed	Tray dimensions and total weight	Matched to the truck compartment and minimum battery weight	Project-confirmed
Project-confirmed	Charger / controller protocol and currents	Per truck and charger model	Project-confirmed
Project-confirmed	Cells, certificates, MOQ, lead time, warranty	Stated per order	Project-confirmed

Reference configurations only — not measured results. Appearance, color and logo customizable per customer request. Certificates, stock and lead time are never assumed; they are confirmed per project.

Applications

80V counterbalance forklifts (electric)
Rental fleets converting from lead-acid
Multi-shift warehouses with opportunity charging
Forklift dealer and battery service SKUs

Application limits

Truck-specific fit — no universal drop-in claim.
Charger must use a LiFePO4 profile.
Truck OEM approvals are not claimed.

OEM / ODM & wholesale

LJY Energy is a China-based LiFePO4 battery supplier and OEM/ODM solutions provider offering customization, project-confirmed specifications and export supply coordination. Appearance, color and logo customizable per customer request. Certificate and documentation scope (e.g. UN38.3 / MSDS for shipping) is confirmed per model, order and target market — request the current document package. See the product catalog and wholesale & distributor program.

What to include in your inquiry

Application and site
Truck brand/model and controller
Existing tray dimensions and minimum battery weight
Charger model; shifts per day
Climate (min/max ambient, indoor/outdoor)
Annual volume
Logo / appearance / packaging needs
Target market (documentation scope)

Request a Quote

WhatsApp: +1 404 784 1946 (backup: +86 159 8945 0735)

Frequently Asked Questions

Is it a drop-in replacement?

Only after the tray size, minimum weight, connectors and charger are confirmed for your truck model.

Why add counterweight?

Lithium packs are lighter than lead-acid; trucks need a minimum battery weight for stability, so ballast is configured per project.

How is MOQ set?

MOQ is confirmed per project stage (sample, pilot, production) and depends on cells, enclosure tooling and branding scope.

Which certificates apply?

Certificate scope is confirmed per model, order and target market. We do not claim certifications on this page.

Values marked [To confirm] or [Competitor public] are not LJY-verified defaults. Product images are product renders for illustration. Content as of October 2026.
