48V (51.2V) LiFePO4 Forklift Battery Series — 200 / 300 / 400 / 500Ah (400Ah Reference Model)

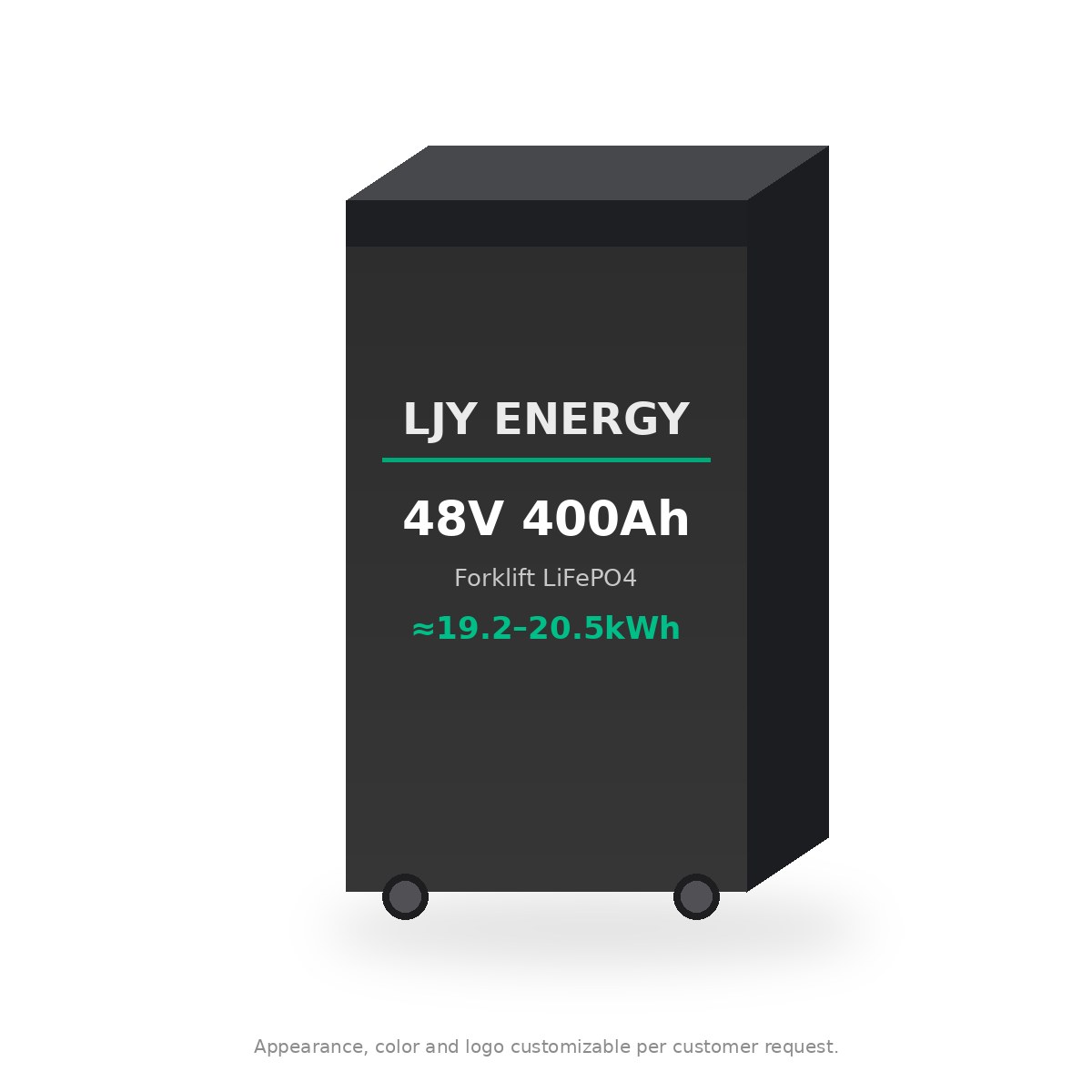

LJY-48V400-FLT 48V (51.2V) 400Ah LiFePO4 forklift battery, front view, white background — Appearance, color and logo customizable per customer request.

Product Overview

A 48V-class 400Ah LiFePO4 traction battery for electric counterbalance forklifts (typically 1.5–2.5t class), reach trucks and heavy pallet stackers — the largest installed base of electric warehouse trucks. Forklift dealers, rental fleets and battery service companies replace lead-acid trays truck model by truck model, which makes 48V 400Ah a high-repeat lithium SKU.

Fit is decided by the tray dimensions, the minimum battery weight (counterweight) and the charger/controller interface — all configured per project. For 80V trucks see the 80V 400Ah forklift battery; for an overview see the 48V–80V forklift guide.

Appearance, color and logo customizable per customer request.

Request a Quote

WhatsApp: +1 404 784 1946 (backup: +86 159 8945 0735)

Specifications

How to read Status — three classes: [Industry reference] = standard reference parameter common to this product class (not an LJY test result). [Optional configuration] = configurable per OEM/ODM project (BMS communication, parallel/series setup, heating, enclosure, logo). [Confirmed per project] = fixed only in the datasheet issued with your quotation. Arithmetic: energy = nominal voltage × Ah.

Group	Parameter	Value	Status
Electrical	Voltage class	48V class: 15S = 48.0V or 16S = 51.2V nominal	[Industry reference]
Electrical	Capacity / energy	15S: 48.0V × 400Ah = 19.2kWh · 16S: 51.2V × 400Ah = 20.48kWh (about 19.2–20.5kWh)	[Industry reference] — arithmetic
Electrical	Continuous / peak discharge	Sized to truck controller (lifting + travel peaks, regen)	[Confirmed per project]
Electrical	Charge profile / charger	LiFePO4 CC/CV; charger communication per project	[Confirmed per project]
BMS	Protections	Over-charge/discharge, over-current, short-circuit, temperature, balancing	[Industry reference]
BMS	Truck / charger communication	CAN to truck controller and charger — protocol per project	[Optional configuration]
BMS	Telematics / SOC display	4G/cloud monitoring; SOC display	[Optional configuration]
Thermal	Self-heating (cold store)	Available on request	[Optional configuration]
Mechanical	Tray dimensions	Matched to the truck compartment (DIN/BCI tray reference)	[Confirmed per project]
Mechanical	Counterweight / total weight	Ballast to meet truck minimum battery weight	[Optional configuration] · value [Confirmed per project]
Mechanical	Connectors	REMA / Anderson-type	[Optional configuration]
Mechanical	IP rating	Per enclosure design	[Confirmed per project]
Cells	Cell brand / traceability documents	Stated per order; documents on request	[Confirmed per project]
Commercial	Certificates / MOQ / lead time / warranty	Per model and order	[Confirmed per project]

Optional configurations (OEM/ODM)

LJY Energy supplies this model as an OEM/ODM configurable build. The items below are configured per customer project — they are not fixed catalog defaults.

Series count: 15S (48.0V) or 16S (51.2V) to match the truck controller and charger.
Counterweight: steel ballast to meet minimum battery weight.
CAN integration with truck and charger — confirmed per project.
Telematics and SOC display options.
Self-heating — available on request, to be confirmed per project.
Branding: Appearance, color and logo customizable per customer request.

BMS, communication & protection

Warehouse trucks combine lifting peaks, travel and regenerative braking; the BMS must cover controller peak and regen charge current.

BMS sizing guide

Load / use case	Suggested BMS rating
Single-shift counterbalance / reach truck	BMS sized to controller continuous and peak
Multi-shift with opportunity charging	Charger current and CAN per project
Cold store	Self-heating option

Send truck brand/model, controller, existing tray size and minimum weight, charger model and shifts per day.

Size, handling & fitment

Measure the compartment (L×W×H) and read the minimum battery weight from the data plate; ballast is often needed because lithium is lighter than lead-acid.

Final dimensions, weight and connector positions are fixed in the project drawing.

Series options: 200 / 300 / 400 / 500Ah (48V class)

This page covers the whole 48V forklift line as an OEM/ODM series. 400Ah is the reference model; the other capacities share the same architecture and are built to the tray and truck. Energy = nominal voltage × Ah.

Capacity	15S energy (48.0V × Ah)	16S energy (51.2V × Ah)	Typical use class (industry reference)
200Ah	9.6kWh	10.24kWh	Pallet stackers, light-duty trucks
300Ah	14.4kWh	15.36kWh	Reach trucks, light counterbalance
400Ah	19.2kWh	20.48kWh	Counterbalance (about 2–3.5t class) — reference model on this page
500Ah	24kWh	25.6kWh	Heavy-duty or multi-shift counterbalance

Typical, optional and project-confirmed items

Group	Parameter	Value	Status
Typical configuration	Voltage / series	15S 48.0V or 16S 51.2V (48V class)	Typical configuration
Typical configuration	Capacity ladder	200 / 300 / 400 / 500Ah	Typical configuration
Typical configuration	Chemistry / BMS	LiFePO4 with smart BMS protections and balancing	Typical configuration
Optional configuration	Larger or intermediate capacity	e.g. 600Ah+ or custom Ah to fit a tray	Optional configuration
Optional configuration	BMS communication	CAN / RS485 to truck and charger; 4G / cloud monitoring	Optional configuration
Optional configuration	Enclosure, counterweight, connectors	Steel case, ballast plates, REMA / Anderson-type connectors, SOC display	Optional configuration
Optional configuration	Self-heating (cold store)	Available on request	Optional configuration
Optional configuration	Branding	Colour, logo, labels, packaging	Optional configuration
Project-confirmed	Tray dimensions and total weight	Matched to the truck compartment and minimum battery weight	Project-confirmed
Project-confirmed	Charger / controller protocol and currents	Per truck and charger model	Project-confirmed
Project-confirmed	Cells, certificates, MOQ, lead time, warranty	Stated per order	Project-confirmed

Reference configurations only — not measured results. Appearance, color and logo customizable per customer request. Certificates, stock and lead time are never assumed; they are confirmed per project.

Applications

48V counterbalance forklifts
Reach trucks and pallet stackers
Rental fleets converting from lead-acid
Forklift dealer and battery service SKUs

Application limits

Truck-specific fit — no universal drop-in claim.
Not for 24V pallet trucks or 80V trucks.
Truck OEM approvals are not claimed.

OEM / ODM & wholesale

LJY Energy is a China-based LiFePO4 battery supplier and OEM/ODM solutions provider offering customization, project-confirmed specifications and export supply coordination. Appearance, color and logo customizable per customer request. Certificate and documentation scope (e.g. UN38.3 / MSDS for shipping) is confirmed per model, order and target market — request the current document package. See the product catalog and wholesale & distributor program.

What to include in your inquiry

Truck brand/model and controller
Existing tray dimensions and minimum battery weight
Charger model; shifts per day
Climate (cold store / ambient)
Annual volume
Logo / appearance / packaging needs
Target market (documentation scope)

Request a Quote

WhatsApp: +1 404 784 1946 (backup: +86 159 8945 0735)

Frequently Asked Questions

48V or 51.2V?

Both are sold as 48V class: 15S LiFePO4 is 48.0V and 16S is 51.2V nominal. The series count is matched to your controller and charger.

Is it a drop-in replacement?

Only after tray size, minimum weight, connectors and charger are confirmed for your truck model.

How is MOQ set?

MOQ is confirmed per project stage (sample, pilot, production).

Which certificates apply?

Certificate scope is confirmed per model, order and target market; none are claimed on this page.

Values marked [To confirm] or [Competitor public] are not LJY-verified defaults. Product images are product renders for illustration. Content as of October 2026.
