Product Overview

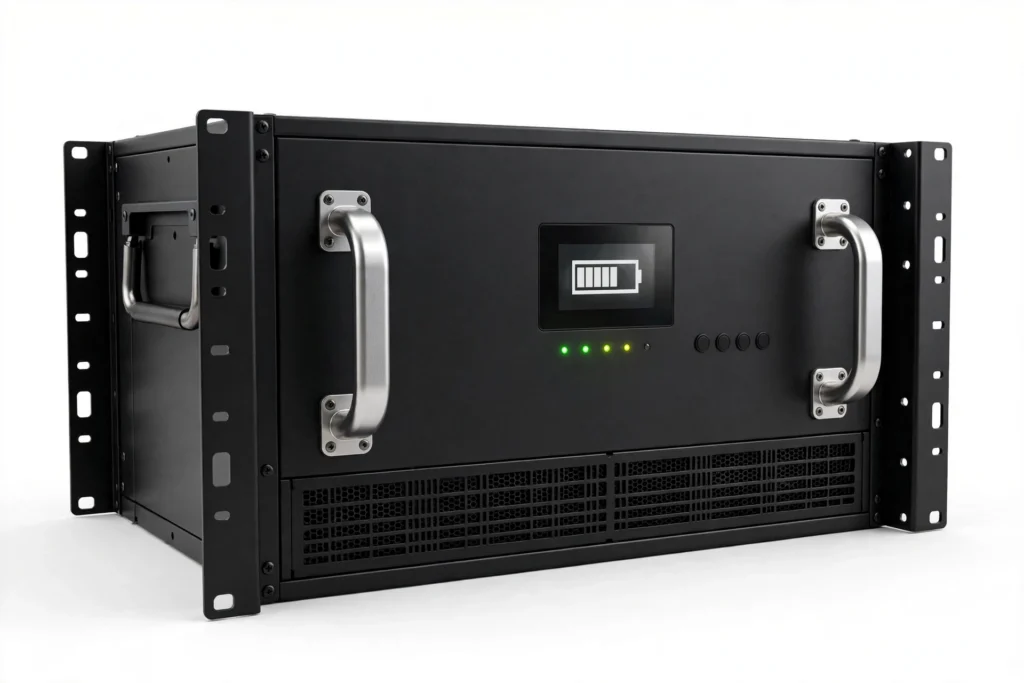

The 48V 200Ah rack mount LiFePO4 battery delivers 10.24kWh in a standard 19-inch rack enclosure. Designed for commercial energy storage, telecom backup, and larger residential systems, it supports parallel expansion for larger banks (e.g. 16 units = 163.84kWh where the BMS and inverter support that count; the maximum parallel count is confirmed per project).
- 10.24kWh per module — high density for commercial use
- 19-inch rack standard — 4U height, easy integration
- CAN/RS485 BMS — inverter communication ready
- Parallel expansion — scalable in 10.24kWh steps; maximum parallel count confirmed per BMS / inverter pairing
For smaller rack options see our 51.2V rack mount series. For wall-mount alternatives see 51.2V 200Ah wall-mounted.
Technical Specifications
| Group | Parameter | Value | Status |
|---|---|---|---|
| Electrical | Nominal voltage | 51.2V (16S) | Typical |
| Electrical | Rated capacity | 200Ah | Typical |
| Electrical | Energy | 10.24kWh | Typical |
| BMS | Continuous discharge | 150A | Typical |
| BMS | Communication | CAN / RS485 / RS232 | Typical |
| Physical | Form factor | 19-inch rack, 4U | Typical |
| Durability | Cycle life | 6000+ cycles at 80% DOD | Typical |
Values above are the typical configuration for this model. Final specifications are confirmed per project in the formal quotation.
Sizing a Rack Bank: From One Module to 160kWh-Class Banks
One 10.24kWh module already covers a large home’s overnight loads or a small commercial backup requirement. The rack format pays off when the bank grows — every added module is the same 4U unit, wired in parallel:
| Modules in parallel | Total energy | Typical project fit |
|---|---|---|
| 1 | 10.24kWh | Large residential storage; small office backup |
| 2 | 20.48kWh | Whole-home backup with solar; telecom site with extended autonomy |
| 4 | 40.96kWh | Small commercial solar storage; multi-tenant or farm loads |
| 8 | 81.92kWh | Commercial backup and peak-shaving projects |
| 16 | 163.84kWh | Larger commercial / industrial installations (16 × 10.24kWh = 163.84kWh; parallel count confirmed per project) |
Two sizing rules apply at every bank size. First, keep all modules in a bank identical — same model, same configuration. Second, check the bank’s combined continuous discharge (150A per module) against your inverter’s rating and surge; a bank sized only by kWh can still be undersized on current. Send us your inverter model and load profile and we will check both numbers before quoting.
Applications
- Commercial solar energy storage
- Telecom base station backup
- Industrial UPS systems
- Large residential off-grid
Ideal For
- Solar installers: Commercial & residential ESS projects needing scalable 10.24kWh modules
- Telecom operators: Base station backup with 19″ rack compatibility
- Distributors: Stock standard SKU or request custom branding
Customization Options
- BMS communication protocol (CAN/RS485) matched to your inverter — see BMS guide
- Parallel configuration support (maximum count confirmed per BMS / inverter pairing)
- OEM branding and packaging per project requirements
Final specs, pricing, and lead times confirmed per project. Request a quote with your application details.
Wholesale, OEM & ODM
Volume pricing for installers and distributors. Custom BMS protocols available. Contact us.
For distributors, this model is built to be a standing line item: a single standard SKU in the highest-demand capacity class, a documented parallel path your installers can sell as expansion, and OEM branding available when your volume justifies your own label. Reorders keep the same specification and communication configuration, so the modules your customers add next year match the bank they installed this year.
Frequently Asked Questions
The page says 48V — why is the nominal voltage 51.2V?
Because “48V” is the system class name, and 51.2V is the actual nominal voltage of a 16-cell LiFePO4 pack (16 × 3.2V). LiFePO4 batteries sold for 48V systems are almost universally 51.2V nominal. What matters is that your inverter supports the 51.2V LFP charge profile — send us the inverter model and we will confirm.
How many units can I parallel, and what do I get?
The maximum parallel count depends on the BMS and inverter pairing and is confirmed per project; as an example, 16 units would give 163.84kWh (16 × 10.24kWh). All units in a bank should be the same model and configuration.
Can the BMS talk to my inverter?
The BMS provides CAN, RS485 and RS232 interfaces. Protocol variants are matched to your inverter before production — this is a per-project confirmation, not an assumption. Our BMS selection guide explains what to check.
Is this the right module for a telecom base station?
It is designed for that use: 19-inch rack compatibility fits standard telecom cabinets, and parallel modules set the autonomy. Confirm the site’s load and required backup hours with us and we will size the module count.
Related Technical Guides
Planning a storage installation? These guides cover system sizing, costs, and technology choices:
- How Much Does a 10kWh LiFePO4 Battery System Cost? — full cost breakdown with TCO analysis
- Why Tesla Megapack Uses LFP Batteries — why LFP dominates stationary storage
- Sodium-Ion vs LiFePO4 for Energy Storage — honest technology comparison
Where This Battery Is Used
This 10.24kWh rack-mounted pack is a standard building block in our Home Energy Storage Solutions and Solar Energy Storage Solutions. Send us your inverter model, target capacity and backup loads for a rack configuration check.
