36V 50Ah LiFePO4 Battery (38.4V)
Product Overview
A 1.92kWh LiFePO4 battery (36V class, 38.4V nominal, 12S, 50Ah) for compact 36V systems: entry-level golf carts and neighborhood vehicles, 36V trolling motors, mobility and cleaning equipment, and light industrial carts.
It is a smaller capacity option under our 36V 100Ah golf cart battery and complements the application notes in our 36V trolling motor battery guide with a dedicated product page for the 50Ah SKU.
WhatsApp: +1 404 784 1946 (backup: +86 159 8945 0735)
Specifications
Status key: [Industry reference] = the base definition of this model class or an arithmetic value, not an LJY test result. [Optional configuration] = available by OEM/ODM project. [Confirmed per project] = fixed only in the datasheet issued with your quotation (cell option, BMS rating, dimensions, weight, terminals, documents). We do not publish unverified values — request the datasheet.
| Group | Parameter | Value | Status |
|---|---|---|---|
| Cell & chemistry | Battery chemistry | LiFePO4 (lithium iron phosphate) | [Industry reference] |
| Electrical | Nominal voltage | 36V class — 38.4V (12S) | [Industry reference] |
| Electrical | Rated capacity | 50Ah | [Industry reference] |
| Electrical | Energy | 1.92kWh | [Industry reference] |
| Electrical | Charge voltage (bulk/absorption) | 43.2–43.8V (no float required) | [Industry reference] |
| Electrical | Discharge cut-off voltage | Confirmed per project (datasheet issued with quotation) | [Confirmed per project] |
| Electrical | Continuous discharge current | Confirmed per project (datasheet issued with quotation) | [Confirmed per project] |
| Cell & chemistry | Cell type | Confirmed per project (datasheet issued with quotation) | [Confirmed per project] |
| Mechanical | Dimensions (L×W×H) | Confirmed per project (datasheet issued with quotation) | [Confirmed per project] |
| Mechanical | Weight | Confirmed per project (datasheet issued with quotation) | [Confirmed per project] |
| Mechanical | Terminals | Confirmed per project (datasheet issued with quotation) | [Confirmed per project] |
| BMS & protection | Built-in BMS | Over-charge / over-discharge / over-current / short-circuit / temperature protection, balancing | [Industry reference] |
| Optional configuration | Bluetooth app monitoring | Cell voltages, SOC, temperature | [Optional configuration] |
| Optional configuration | Low-temperature protection / self-heating | Charge cut-off below 0°C; heating version | [Optional configuration] |
| Optional configuration | Higher-current BMS | See BMS sizing guide below | [Optional configuration] |
| Optional configuration | Enclosure / branding | Custom case color, logo, labels, packaging | [Optional configuration] |
| Optional configuration | Series / parallel expansion | Max series/parallel count confirmed per BMS | [Optional configuration] |
| Optional configuration | Bluetooth / SOC meter | Dash-mount or app monitoring | [Optional configuration] |
| Optional configuration | CAN / RS485 communication | For controller or charger integration | [Optional configuration] |
| Optional configuration | Charger | 36V LiFePO4 charger, current per order | [Optional configuration] |
| Optional configuration | Installation kit | Brackets, cables, DC-DC for 12V accessories | [Optional configuration] |
| Commercial & documents | Certifications / test documents | Per order and target market | [Confirmed per project] |
| Commercial & documents | Warranty terms | Per order agreement | [Confirmed per project] |
| Commercial & documents | Lead time | Per order quantity and configuration | [Confirmed per project] |
| Commercial & documents | Pricing | Quoted per inquiry | [Confirmed per project] |
BMS, Communication & Protection
Every pack uses a built-in battery management system with over-charge, over-discharge, over-current, short-circuit and temperature protection plus cell balancing. The BMS current rating sets what the battery can actually deliver, so it should be chosen from the load — not from the capacity. The guide below is general engineering guidance; the BMS rating offered for your order is confirmed in the quotation.
BMS sizing guide
| Load / use case | Suggested BMS rating |
|---|---|
| Light 36V golf carts / mobility (moderate load) | 50A BMS |
| 36V trolling motors — match motor max draw | 50–80A BMS |
| Lifted carts or high-current controllers | Higher BMS or step up to 36V 100Ah |
Match the BMS to the motor controller peak current, not only to the Ah rating. Tell us the cart/motor model and controller rating. Charging: use a 36V LiFePO4 profile (about 43.2–43.8V absorption for 12S). Confirm the charger profile before installation.
Size & Fitment
Golf cart and equipment trays vary widely. Send tray measurements (L×W×H) and terminal position. Final dimensions are confirmed per project in the quotation datasheet.
36V lead-acid carts often need a DC-DC converter for 12V accessories after conversion; it can be included in the kit.
Applications
- 36V golf carts and neighborhood EVs (entry / short-range)
- 36V trolling motors
- Mobility and cleaning equipment
- Light industrial and campus vehicles
- Lead-acid to lithium conversion for 36V systems
Application limits
- Confirm controller voltage window for 38.4V lithium.
- Use a LiFePO4-profile charger.
- Range depends on load, terrain and speed — we do not publish a guaranteed range.
See also: Marine Battery Solutions · Product catalog.
OEM / ODM Options
- Branding: case color, logo printing, labels, user manual and retail packaging.
- Electrical: capacity variant, BMS continuous/peak current, charge limits.
- Monitoring & communication: Bluetooth app, SOC display, RS485 / CAN where the system needs it.
- Environment: low-temperature charge protection or self-heating.
- Mechanical: enclosure size, terminals, handles, mounting and connector type.
How we help new battery brands configure this model
- 1. Define the use case: application, largest load / inverter or controller, charging sources and climate.
- 2. Pick the configuration: we map that to cell option, BMS rating, monitoring and enclosure, and flag trade-offs.
- 3. Sample stage: evaluate samples against your own tests and documentation needs.
- 4. Pilot order: confirm labeling, packaging and document package.
- 5. Repeat supply: lock the specification so reorders stay consistent.
Wholesale & Supply Chain
LJY Energy is a China-based LiFePO4 battery supplier and OEM/ODM solutions provider offering customization, project-confirmed specifications and export supply coordination. We support configuration, project-confirmed inspection and documentation arrangements, and export logistics for importers, distributors, brands and installers. Lithium batteries ship as dangerous goods (UN3480, Class 9); the document package for your order is confirmed per inquiry. See the product catalog, our sample order guide and the wholesale & distributor program.
What to include in your inquiry
- Cart / motor / controller model and max current
- Tray dimensions and terminal position
- Charger and accessory (DC-DC) needs
- Target market (for documents/labels), estimated quantity and branding needs
WhatsApp: +1 404 784 1946 (backup: +86 159 8945 0735)
Compare with neighbouring capacities
36V-class models on this site next to this one. Nominal energy is nominal voltage × rated capacity (38.4V × Ah): an arithmetic reference, not a measured value. Usable energy depends on depth of discharge, BMS settings and temperature. Reference values reviewed 2026-10-15; final values are confirmed in the datasheet issued with your quotation.
| Model | Nominal energy (V × Ah) | Energy vs this model | Typical use class (industry reference) |
|---|---|---|---|
| 36V 50Ah (this page) | 1.92kWh (38.4V × 50Ah) | This model | Light utility carts, trolling and small mobility |
| 36V 100Ah | 3.84kWh (38.4V × 100Ah) | +1.92kWh (+100%) | Golf carts and utility vehicles |
| 36V 105Ah | 4.032kWh (38.4V × 105Ah) | +2.11kWh (+110%) | Golf carts and utility vehicles |
Related Products
- 36V 100Ah LiFePO4 Golf Cart Battery
- 36V 105Ah Golf Cart Lithium Battery
- 36V 200Ah LiFePO4 Golf Cart Battery
- 36V LiFePO4 Battery for Trolling Motors
- Golf Cart Lithium Battery Series
- Golf Cart Battery Solutions
- Product catalog
Frequently Asked Questions
Can it replace a lead-acid battery directly?
Usually, after checking charger profile, terminal type/orientation and compartment dimensions. See our LiFePO4 vs lead-acid guide.
Are the specifications on this page fixed?
No. Values marked [Confirmed per project] are fixed only in the datasheet issued with your quotation.
Can you supply it under my own brand?
Yes — case color, logo, labels, manual and packaging are standard OEM options; electrical and monitoring changes are handled as ODM configuration.
Is a 36V LiFePO4 battery really 38.4V?
Yes. A 12-cell LiFePO4 pack has a 38.4V nominal voltage and is the standard lithium replacement for 36V lead-acid systems.
50Ah or 100Ah for a golf cart?
50Ah suits light use and short courses; most dealers stock 100Ah as the mainstream 36V cart SKU. Confirm daily range needs before ordering.

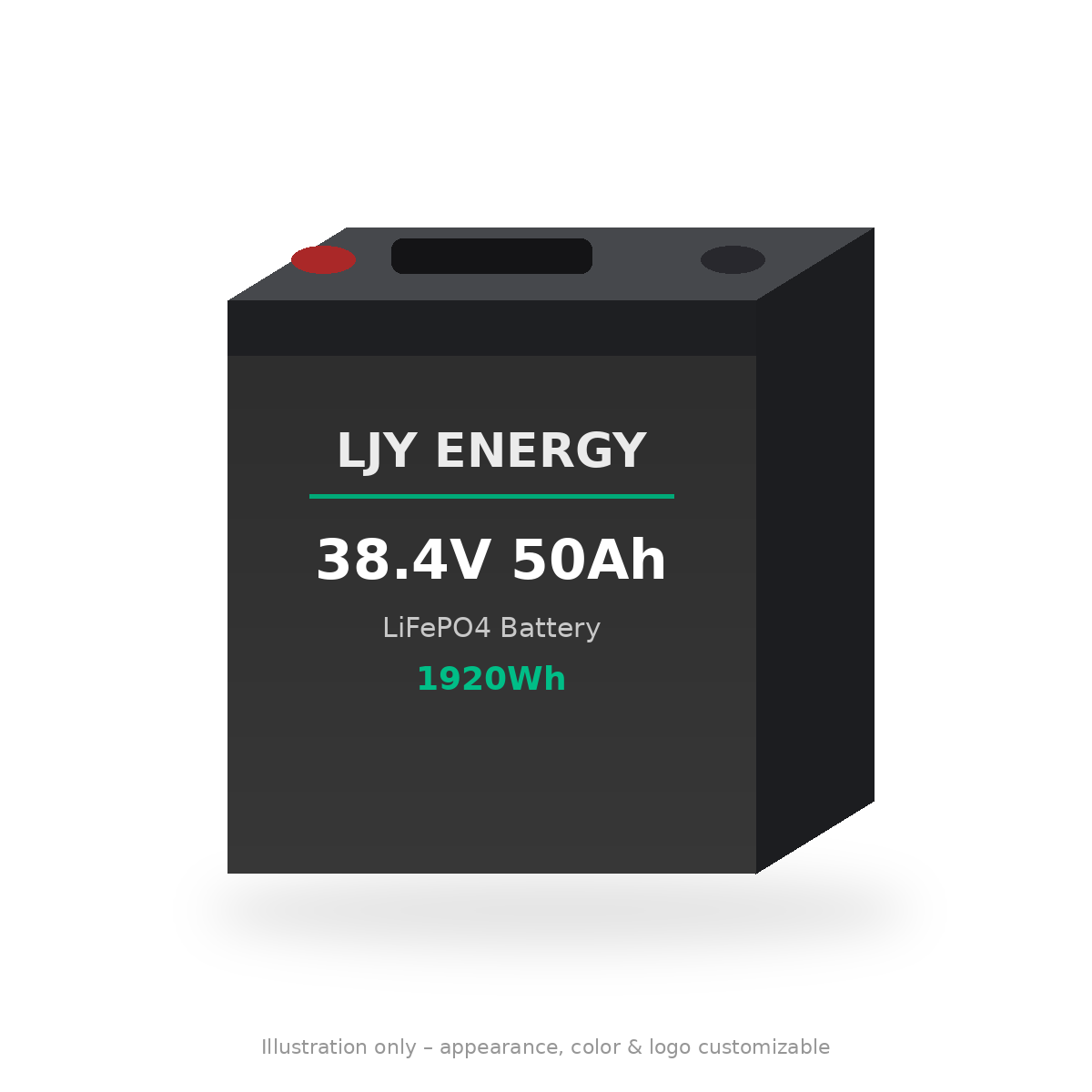

Values marked [Confirmed per project] are fixed in the order specification. Product images are illustrative renders, not photographs of production units. Content as of October 2026.
